Specifications
- transmitter / receiver range: up to 9m (29.5′)
- relay output: 240V / 5A (switch or pulse contact)
- supply voltage: 220VAC (110VAC possible)
- recommended housing: B6713
-
Specifications
- type: ABS
- diameter: 1.75 mm (1/16″)
- package: box
- density: 1.01 g/cm³ (@ 21.5 °C) / 0.036 lb/in³ (@ 70.7 °F)
- print temperature: 220-245 °C / 428-473 °F
- impact strength: 16 kJ/m² / 7.6 ft-lb/in²
-
Specifications
- type: PLA
- diameter: 1.75 mm (1/16″)
- package: reel
- colour: black
- density: 1.25 g/cm³ (@ 21.5 °C) / 0.045 lb/in³ (@ 70.7 °F)
- print temperature: 190-225 °C / 374-437 °F
- impact strength: 5 kJ/m² / 2.38 ft-lb/in²
- weight: 1 kg / 2.2 lb
- length: 350-360 m / 1,148-1,181 ft
- dimensions (reel): Ø 20 x 7 cm / Ø 8″ x 2.8″
-
Specifications
- type: PLA
- diameter: 1.75 mm (1/16″)
- package: reel
- colour: white
- density: 1.25 g/cm³ (@ 21.5 °C) / 0.045 lb/in³ (@ 70.7 °F)
- print temperature: 190-225 °C / 374-437 °F
- impact strength: 5 kJ/m² / 2.38 ft-lb/in²
- weight: 1 kg / 2.2 lb
- length: 350-360 m / 1,148-1,181 ft
- dimensions (reel): Ø 20 x 7 cm / Ø 8″ x 2.8″
-
Specifications
- type: PLA
- diameter: 1.75 mm (1/16″)
- package: reel
- colour: wood
- printing temperature: 190-200° C
- bed temperature: 60° C or no heating
- infill speed: 20-80 mm/s
- travel speed: 30-80 mm/s
-
Specifications
- power supply: 12V DC
- consumption: max. 4A
- outputs: 12V DC / 400mA per channel (total : max 4A)
- dimensions: 140 x 100 x 27mm / 5.5 x 3.9 x 1.1″
-

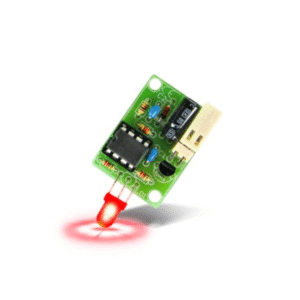

Specifications
- dimensions: 30x20mm / 1.18 x 0.78″ (board)
- Voltage thresholds are (+/- 2%):
- RED: 5-10.9V battery low
- GREEN: 11 – 13.2V battery OK
- GREEN GLOW: 13.3 – 17.7V battery charging
- RED BLINK: 15.8 + battery NG or overcharging
-
Specifications
- power supply: 8 ~ 14VDC or 2×6 ~ 2x12VAC (150mA)
- current consumption:
- all outputs off: 10mA
- all outputs on: 150mA
- dimensions: 71 x 114mm / 2.8 x 4.5″
-

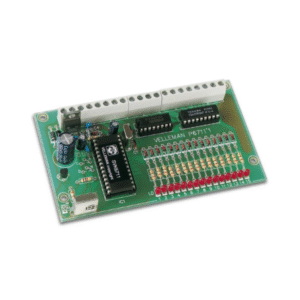

Specifications
- 15 open collector outputs: 50V / 100mA
- LED indication for every output
- change-over or pulse contact: selectable per output
- power supply: 8 – 14VDC or 2 x 12VAC / 150mA
- PCB dimensions: 70 x 145mm (2.8″ x 5.7″)
- recommended housing: WCAH2851: PLASTIC BOX – BLACK 160 x 95 x 55 mm
- recommended transformer: 2120038M
- recommended adapter: PS1205
-
Specifications
- power supply: 12-24 VDC
- relay contact: 16 A max.
- dimensions: 80 x 45 x 22 mm / 3.15 x 1.78 x 0.86″
-
Specifications
- receiver:
- power supply: 9 to 13Vac or 10 to 15Vdc
- consumption : 130mA max. / 20mA standby (heating off)
- relay contacts NO / NC: 5A (resistive load) each
- 433MHz operation
- selectable timers per output: 0.5s, 5s, 30s, 1min, 5min, 15min, 30min and 60min
- Heating option for use in cold environments
- open field range of up to 30m possible
- external antenna
- dimensions: 80 x 70 x25mm / 3.15 x 2.75 x 0.98″
- transmitter:
- power supply: 12V battery (included)
- V23GA: ALKALINE MN21 V23A 12V-38mAh 4223.101.401 (1pc/bl) / GP23GAC: ALKALINE V23A / EL12 12 V (5pcs/bl)
- 433MHz operation
- dimensions: 63 x 40 x 16mm (2.5″ x 1.6″ x 0.6″)
-
Specifications
- 200W music power @ 4 ohm load
- 100Wrms power @ 4 ohm load
- 70Wrms power @ 8 ohm load
- distortion: 0.02% @ 1KHz/10W
- damping factor: >800
- frequency response: 3Hz to 20KHz (-3dB)
- sensitivity: 0.6Vrms
- signal to noise ratio: 115dB
- power supply: 25-30Vac 120VA
- PCB dimensions: 107x62mm (approx.)
- recommended power transformer:
- 230VAC input, 2 x 30VAC output: 12030
- 115 / 230VAC input, 2 x 25VAC output: TR8040 (output power reduced by ±15%)
