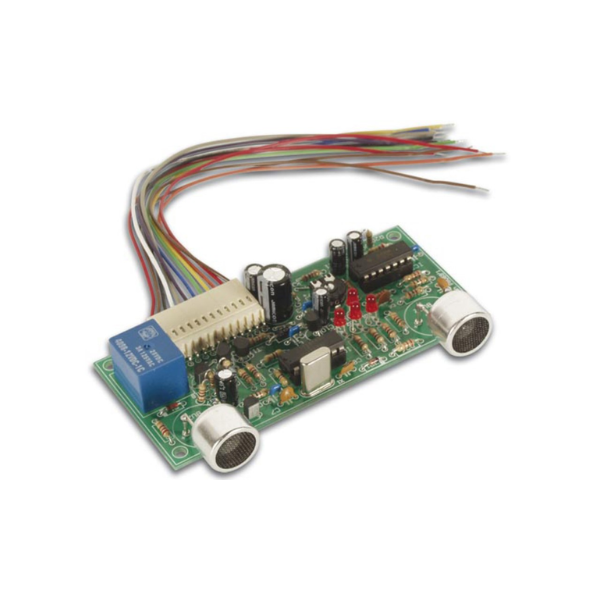

ULTRASONIC RADAR MODULE
Roll over image to zoom in
Specifications
- range: 20 … 250cm
- frequency: 40kHz
- digital output: 5V (50mA max.)
- analogue output: 0…5V (5mA max)
- buzzer output: 12V (100mA max.)
- relay contacts: 1A low voltage NO/NC
- power supply: 12VDC
- current consumption: 200mA max.
- dimensions: 110 x 50 x 18mm / 4.3 x 2.0 x 0.7″
- buzzer output: fast / slow / continuous
- distance indication with 3-LED-bar
- adjustable alarm distance
- LED alarm indicator
- dry contact NO/NC relay
- applications: robot projects, object detection, distance measuring, parking aid, security systems
