ARDUINO COMPATIBLE 3 COLOUR RGB SMD LED MODULE (2 pcs)
Specifications
- power dissipation: R 60mW, G 95mW, B 95mW
- peak forward current (0.1 ms pulse width): 100 mA for each colour
- continuous forward current: 25 mA for each LED
- max. reverse voltage: 5 V
- operating temperature: -40 °C to 80 °C
- dimensions: 28 x 15 x 5 mm
- common: cathode (-)
- attention: current has to be limited by using resistors
-
ARDUINO COMPATIBLE DATA LOGGING SHIELD
Specifications
- back-up battery: CR1220 battery (incl.)
- dimensions: 43 x 17 x 9 mm
-

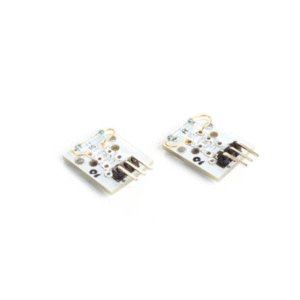

ARDUINO COMPATIBLE MINI MAGNETIC REED MODULE (2 pcs)
Specifications
- voltage: 5 VDC
- connection: 3 pins, +(middle pin), ground and DO (data out)
- dimensions: 25 x 15 mm
- weight: 2 g
-
ARDUINO COMPATIBLE RFID READ AND WRITE MODULE
Specifications
- operating voltage: 3.3 VDC
- working current: 13 to 26 mA
- sleep current: < 80 uA
- peak current: < 30 mA
- working frequency: 13.56 MHz
- supported card types: RFID
- interface / protocol: SPI
- controller chip: MFRC522
- data transmission speed: Max. 10 Mbit / s
- dimensions: 66 x 40 x 7 mm
- includes: 2 tags (1 card , 1 fob)
-
ARDUINO COMPATIBLE RGB LED MODULE (2 pcs)
Specifications
- voltage: 5 VDC
- connection : 4 pin male header
- pins: GND, RED, GREEN, BLUE
- dimensions: 24 x 16 x 16 mm
- weight: 2 g
-
ARDUINO COMPATIBLE TACTILE SWITCH SENSOR MODULE (2 pcs)
Specifications
- voltage: 5 VDC
- connection: 3 pins, +(middle pin), ground and DO (data out)
- dimensions: 25 x 15 mm
- weight: 2 g
-
ATmega2560 MEGA DEVELOPMENT BOARD
Specifications
- microcontroller: ATmega2560
- operating voltage: 5 VDC
- input voltage (recommended): 7-12 VDC
- input voltage (limits): 6-20 VDC
- digital I/O pins: 54 (of which 15 provide PWM output)
- analogue input pins: 16
- DC current per I/O pin: 40 mA
- DC current for 3.3 V pin: 50 mA
- flash memory: 256 kB of which 8 kB used by bootloader
- SRAM: 8 kB
- EEPROM: 4 kB
- clock speed: 16 MHz
- length: 112 mm
- width: 55 mm
- weight: 62 g
-
ATmega328 UNO DEVELOPMENT BOARD
Specifications
- microcontroller: ATmega328
- operating voltage: 5 VDC
- input voltage (recommended): 7-12 VDC
- input voltage (limits): 6-20 VDC
- digital I/O pins: 14 (of which 6 provide PWM output)
- analogue input pins: 6
- DC current per I/O pin: 40 mA
- DC current for 3.3 V pin: 50 mA
- flash memory: 32 kB (ATmega328) of which 0.5 kB used by bootloader
- SRAM: 2 kB (ATmega328)
- EEPROM: 1 kB (ATmega328)
- clock speed: 16 MHz
- length: 68.6 mm
- width: 53.4 mm
- weight: 25 g
-
Automatic wire cutter and stripper, fast, safe, and easy to use
Physical properties Primary colour Red Depth unit 2.7 cm Height unit 23.5 cm Width unit 10.5 cm Weight unit 240 g Material Metal Material (Detail) Steel -
AUTOMATICALLY ADJUSTING WIRE CUTTER/STRIPPER
Specifications
- strips wires: Ø 1/1.6/2/2.6/3mm (AWG 18/14/12/10/8)
-
Battery Connectors (1/0AWG) (1 Housing + 2 terminal) 175A
- Current capacity: 175A / Suitable wire: 1/0AWG
- Unisex type for both males and females.
- Different colors will not fit together.
*One set includes one housing and two contacts. (BMC2M/BMC60AG)
*Current capacity varies depending on the applicable wire.
