Specifications
| Physical properties |
| Primary colour |
White |
| Additional colours |
Multi |
| Depth unit |
12.9 mm |
| Height unit |
6.35 mm |
| Width unit |
17.82 mm |
| Weight unit |
6.35 g |
| Material |
Nylon |
| Additional material |
Brass,Tin |
| Wire length |
20 cm |
| Shape |
Flat |
-
| Colour |
Black, Green, Red |
| Connector type |
Pin |
| Contact material |
Copper |
| Insulation material |
PA66 Nylon |
| Terminal |
Pin Terminal |
-
Specifications
| Physical properties |
| Primary colour |
Grey |
| Primary detailed colours |
Metallic silver |
| Depth unit |
1.81 cm |
| Height unit |
1.81 cm |
| Weight unit |
10.5 g |
| Material |
Metal alloy |
-
Specifications
| Physical properties |
| Primary colour |
Grey |
| Primary detailed colours |
Metallic silver |
| Depth unit |
1.84 cm |
| Height unit |
1.84 cm |
| Width unit |
4.2 cm |
| Weight unit |
20.4 g |
| Material |
Metal alloy |
-
Specifications
- TRANSMITTER:
- power supply: 3 AAA batteries (not incl.) (option: TR-G3/8)
- 433 MHz operation
- 8 digitally encoded channels
- rubber keypad
- LED function/mode indication
- dimensions: 150 x58 x 23 mm
- FCC approved ID code: NLO8058
- RELAY RECEIVER CARD:
- 8 high-quality relay contacts, 5A/230Vac max.
- relay outputs are transient suppressed using VDR’s
- LED confirmation on each relay contact
- input power: 12 Vac / 500 mA
-
Specifications
- power supply for relays: 9-10Vac or 12 to 14Vdc (500mA), example: PS1205
- 8 high-power relays: 16A each (resistive load)
- dimensions: 160 x 107 x 30mm / 6.3 x 4.2 x 1.2″
-
Specifications
- power supply for relays: 9-10Vac or 12 to 14Vdc (500mA), example: PS1205
- 8 high-power relays: 16A each (resistive load)
- dimensions: 160 x 107 x 30mm / 6.3 x 4.2 x 1.2″
-
Specifications
- connector: 9 pins
- female
- for chassis mounting
- solder
-
Specifications
- connector: 9 pins
- male
- for chassis mounting
- solder
-
Specifications
- material: PVC
- grounding cord: PU coil cord with resistor of 1 Mohm
- band size: 2 x 21 cm
- band resistivity: < 50 Ohm
- colour: blue
-

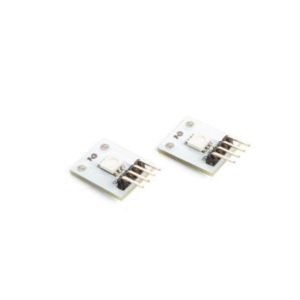

Specifications
- power dissipation: R 60mW, G 95mW, B 95mW
- peak forward current (0.1 ms pulse width): 100 mA for each colour
- continuous forward current: 25 mA for each LED
- max. reverse voltage: 5 V
- operating temperature: -40 °C to 80 °C
- dimensions: 28 x 15 x 5 mm
- common: cathode (-)
- attention: current has to be limited by using resistors
-
Specifications
- operating voltage: 3.3 VDC
- working current: 13 to 26 mA
- sleep current: < 80 uA
- peak current: < 30 mA
- working frequency: 13.56 MHz
- supported card types: RFID
- interface / protocol: SPI
- controller chip: MFRC522
- data transmission speed: Max. 10 Mbit / s
- dimensions: 66 x 40 x 7 mm
- includes: 2 tags (1 card , 1 fob)
