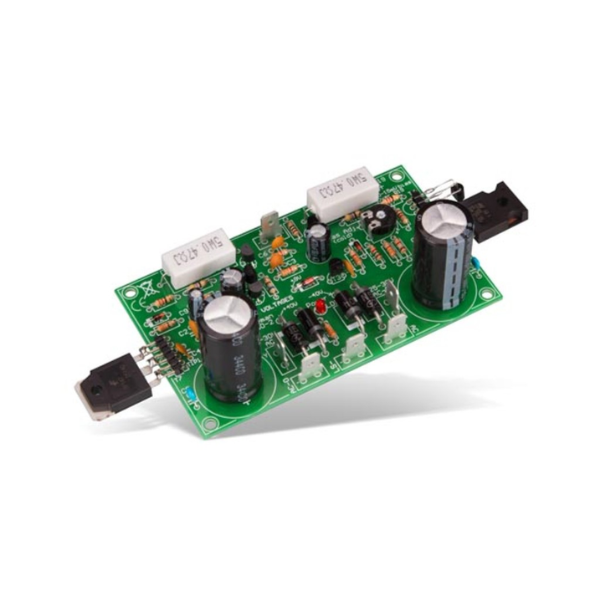

DISCRETE POWER AMPLIFIER 200 W
Roll over image to zoom in
Specifications
- 200W music power @ 4 ohm load
- 100Wrms power @ 4 ohm load
- 70Wrms power @ 8 ohm load
- distortion: 0.02% @ 1KHz/10W
- damping factor: >800
- frequency response: 3Hz to 20KHz (-3dB)
- sensitivity: 0.6Vrms
- signal to noise ratio: 115dB
- power supply: 2 x 25-30Vac / 120VA
- PCB dimensions: 107x62mm (approx.)
- recommended heatsink: HSVM100: HEATSINK FOR K8060 (pre-drilled) or S44/75 (not drilled)
- recommended power transformer:
- 230VAC input, 2 x 30VAC output: 12030
- 115 / 230VAC input, 2 x 25VAC output: TR8040 (output power reduced by ±15%)
- excellent value for money
- fully discrete design using Epitaxial Darlington transistors
- DC supply circuit on board with LED indication
- ideal for active speaker system or subwoofer, guitar amp, home theatre systems, instrument amp, etc.
- comes complete with transistor isolators, spacers and bolts
- overload and short-circuit protection
- OPTIONAL HEATSINK REQUIRED! Also available as completely mounted module VM100
